12 kV switchgear

12 kV switchgear up to 1600 A, 16 kA, 20 kA, 25 kA, 31.5 kA/40 kA

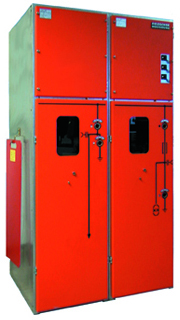

Switchgear type D12

Switchgear type D12

DRIESCHER Air-insulated medium-voltage switchgear type D12

– type D12 – 507519 – rated voltage 12 kV – rated current 630 A

Downloads:


787 DRIESCHER – Air-Insulated medium voltage switchgear type D12 and D24

PDF Download 369 KB

B787e User guide for DRIESCHER – Air-insulated medium voltage switchgear type D12 and D24

PDF Download 776 KB

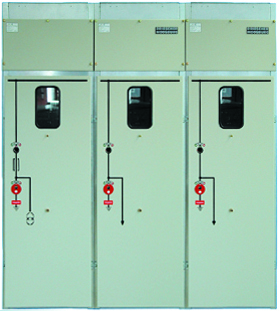

12 kV switchgear type W12

12 kV switchgear type W12

DRIESCHER Air-insulated medium voltage switchgear

– type W12 – 607519 – type W12 – 757521 – type W12 – 907521 – rated voltage 12 kV – rated current up to 630 A

Downloads:


780e DRIESCHER Air-insulated medium voltage switchgear type W12

PDF Download 589 KB

B780e User guide for DRIESCHER – Air-insulated medium voltage switchgear type W12

PDF Download 267 KB
12 kV compact switchgear

12 kV compact switchgear

DRIESCHER – Air-insulated medium voltage compact switchgear for substations

– rated voltage 12 kV to 24 kV – rated current 630 A

Downloads:


788e DRIESCHER Air-insulated medium voltage compact switchgear for substations

PDF Download 647 KB

B788e User guide for Air-insulated medium voltage compact switchgear for substations

PDF Download 831 KB

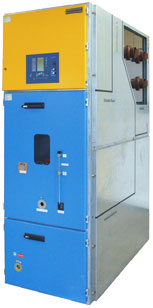

WEL/E2K/E3K 12 kV switchgear

WEL/E2K/E3K 12 kV switchgear

DRIESCHER – Air-insulated medium voltage switchgear

– withdrawable type WEL – withdrawalbe type with 2- or 3-compartment design E2K, E3K – rated voltage 12 kV and 24 kV

Medium voltage switchgear E2K / E3K12-801424

  • Type tested according to EN 62271-200
  • Rated voltage 12 kV
  • Rated current up to 1600 A
  • Rated short-time current up to 31.5 kA
  • Degree of protection IP4X
  • 3-compartment design
  • Air-insulated
  • Minimal expenditure of maintenance
  • Simple operation
  • LSC2B-PM, IAC A FL 31.5 kA, 1s
  • Withdrawable-unit design, without disconnector

Downloads:


 785e DRIESCHER – Air-insulated medium voltage switchpanels

PDF Download 641 KB

 E3K_12_801424e Medium voltage switchgear E2K / E3K12-801424

PDF Download 480 KB

B785e User guide for DRIESCHER – Air-insulated medium voltage switchpanels

PDF Download 801 KB

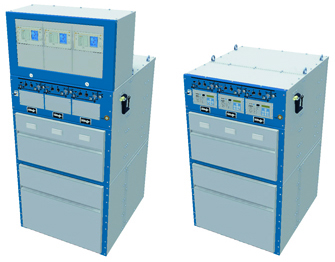

ECOS-C

Medium voltage switchgear ECOS-C – eco-friendly (SF6 free) – user friendly – 1-pole isolate power bus bar

Downloads:


ECOS-C_e Medium voltage switchgear PDF Download 1 MB

B_ECOS-C_e User guide – Medium voltage switchgear PDF Download 3 MB

ECOS-C_it. Quadro di media tensione PDF Download 3 MB

B_ECOS-C_it. Istruzioni per l’uso – Quadro di media tensione PDF Download 3 MB

ECOS-C_fr. Installation de commutation moyenne tension PDF Download 3 MB

B_ECOS-C_fr. Instructions d’opération – Installation de distribution moyenne tension PDF Download 3 MB

Measuring panel W12/24-38.5

Measuring panel W12/24 – rated voltage 12 kV – rated current 630 A

Passende Downloads:


W12_38.5_DRIESCHER_Measuringpanel

PDF Download 1MB
